The Hybrid Sound

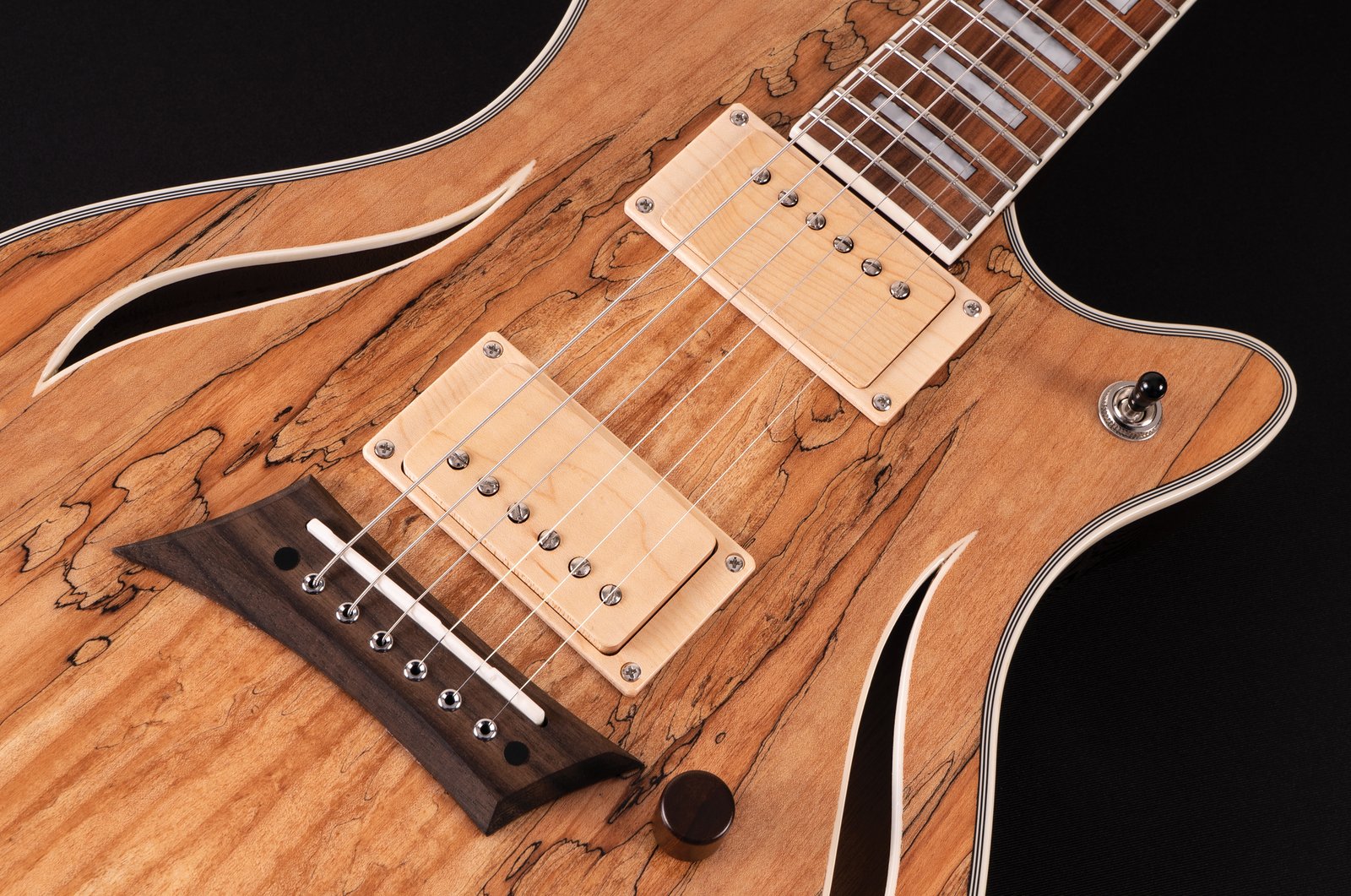

Two custom voiced Rockfield SWC humbucker pickups with coil splitting allow the guitar to deliver everything from super clean twang tones to thick drippy drive sounds. A Fishman® under-saddle pickup with Fishman® Powerchip delivers a rich acoustic tone. The electric and acoustic signals are combined when using a standard guitar cable, or separated via a Y-cable to deliver isolated signals to electric or acoustic amplifiers for maximum sonic impact.
The 2-Output Option
Unlock the full potential of your MK Hybrid with a Y-cable. This allows you to send the signal from the magnetic pickups to one amp or channel and the signal from the acoustic tone to another. This lets you perfect your sound. Use of Y-cable is optional, use regular cable to a single amp or channel, no problem!
- Lightweight chambered mahogany body
- Set-in neck with Modern C profile for comfortable playing
- Dual humbuckers with individual coil-splits for 8 different electric tone options
- Fishman® Powerchip under-saddle pickup for acoustic sound
- 3-way selection between electric, acoustic, and hybrid sounds
- Optional Y-cable output capability for sending electric and acousitc pickups to individual amps
Specifications
| Top | Ziricote / Spalted Maple |
|---|---|
| Body | Chambered Mahogany |
| Binding | 5-ply White–black |
| Construction | Set Neck |
| Neck | Mahogany |
|---|---|
| Neck Profile | Modern C |
| Binding | Single-Ply White |
| Fretboard | Pau Ferro |
| Fretboard Radius | 12" |
| Number of Frets | 22 Medium Jumbo |
| Scale Length | 24.75" / 628mm |
| Nut Material | Synthetic Graphite |
| Nut Type | Standard |
| Nut Width | 43 mm |
| Inlays | Abalone block (Pre-2019 Models) / Mother of Pearl (Post-2019 Models) |
| Truss Rod Type | Dual Action |
| Strings | D'Addario EXL110 (.010-.046) |
| Mods | Acoustic and electric pickups wired via 3-way selector switch, optional Y-cable output option |
|---|---|
| Electronics | 1 x Master Volume, 1 x Acoustic Volume, 2 x Tone (w/ Push-Pull Coil Split), 3-Way Pickup Selector Toggle Switch, 3-Way Acoustic/Electric Hybrid Selector Toggle Switch |
| Neck Pickup | Rockfield® SWC |
| Bridge Pickup | Rockfield® SWC |
| Acoustic Pickup | Fishman® Powerbirdge Under-Saddle |
| Hardware Finish | Chrome |
|---|---|
| Tuning Keys | Grover® |
| Bridge Type | Pau Ferro MK Acoustic |
